Resilience in Microservice

2.8-Making-Microservices-more-resilient

In microservices architecture, the term resilient (or resilience) refers to a system's ability to withstand failures, recover quickly, and continue functioning correctly even when some of its components fail or face unexpected issues.

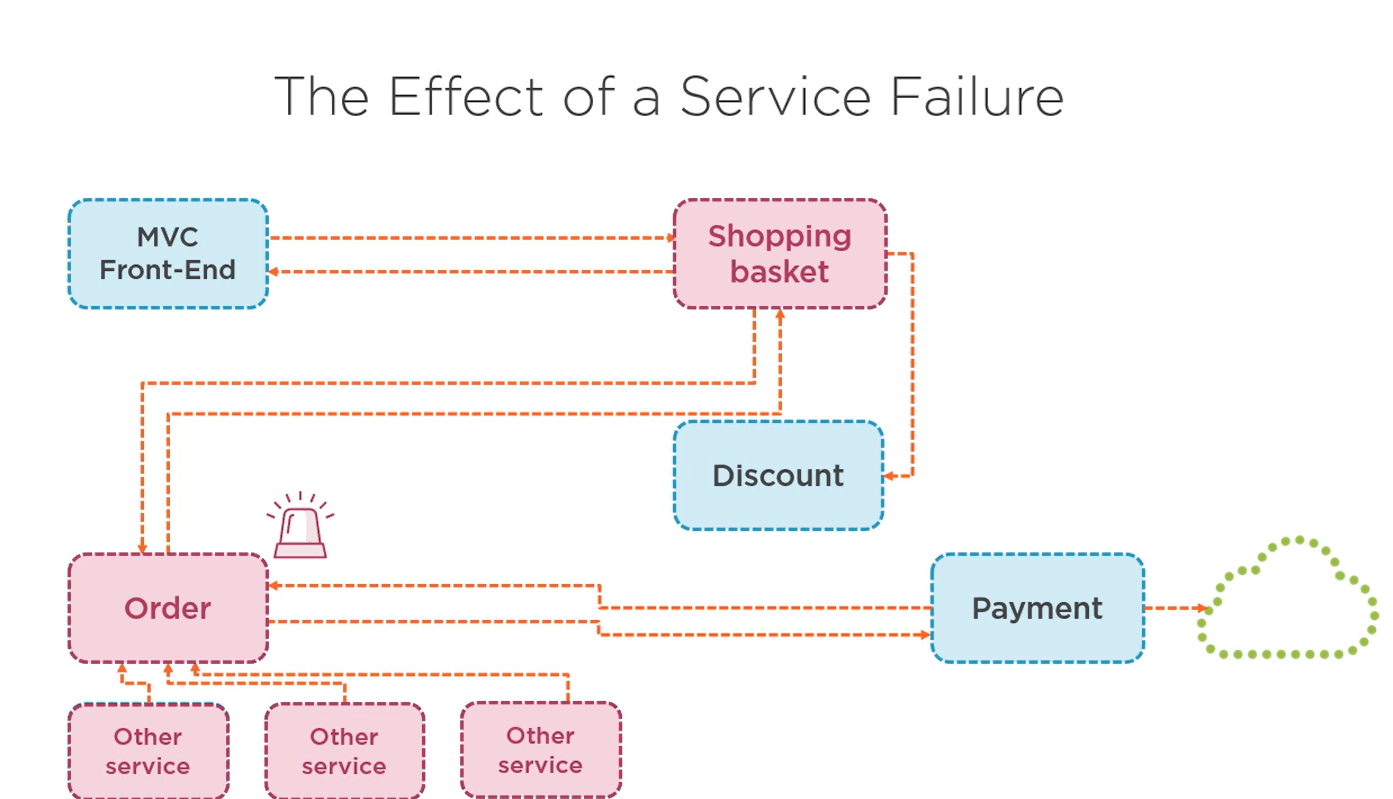

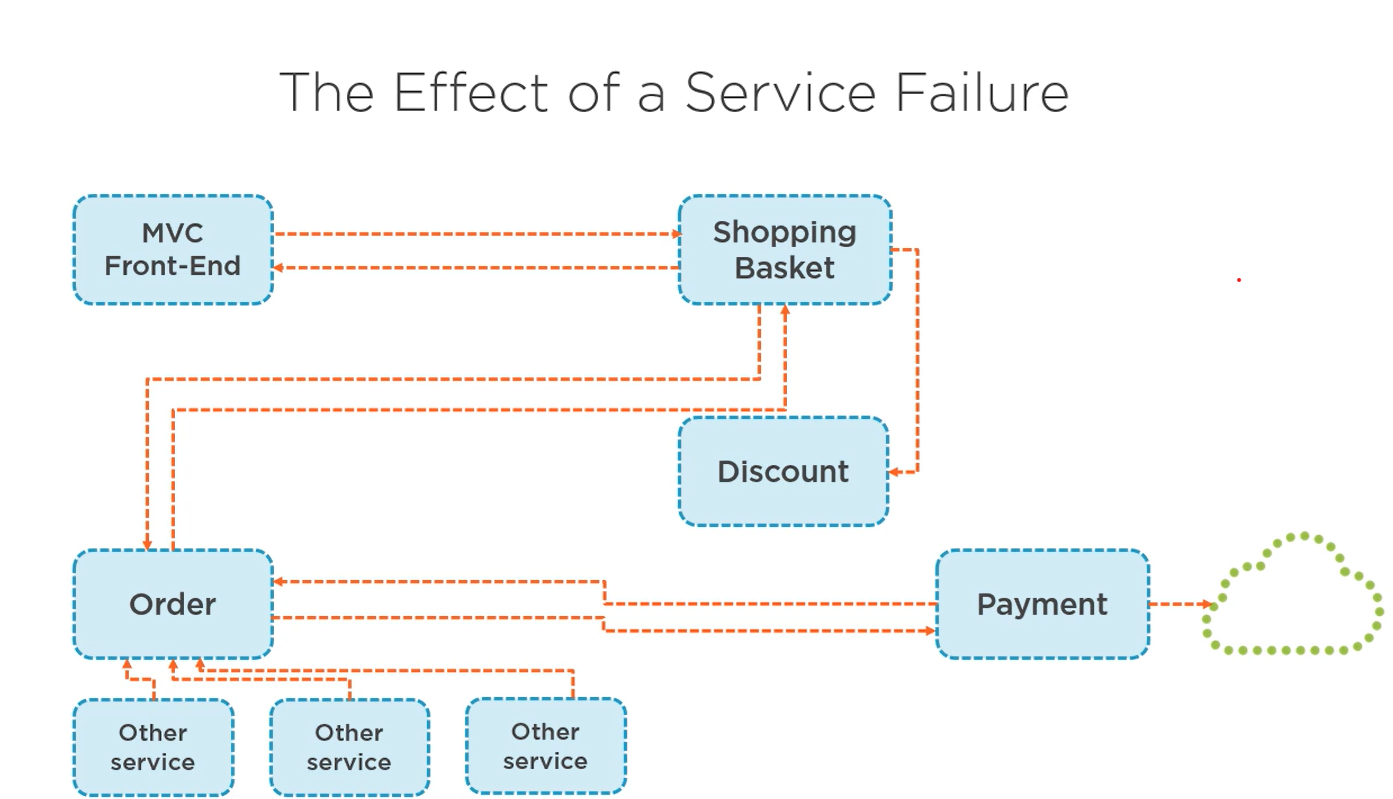

Because microservices are distributed systems, failures are inevitable—network issues, service crashes, slow responses, or resource exhaustion can happen. A resilient microservice ensures that these failures do not cascade and bring down the entire system.

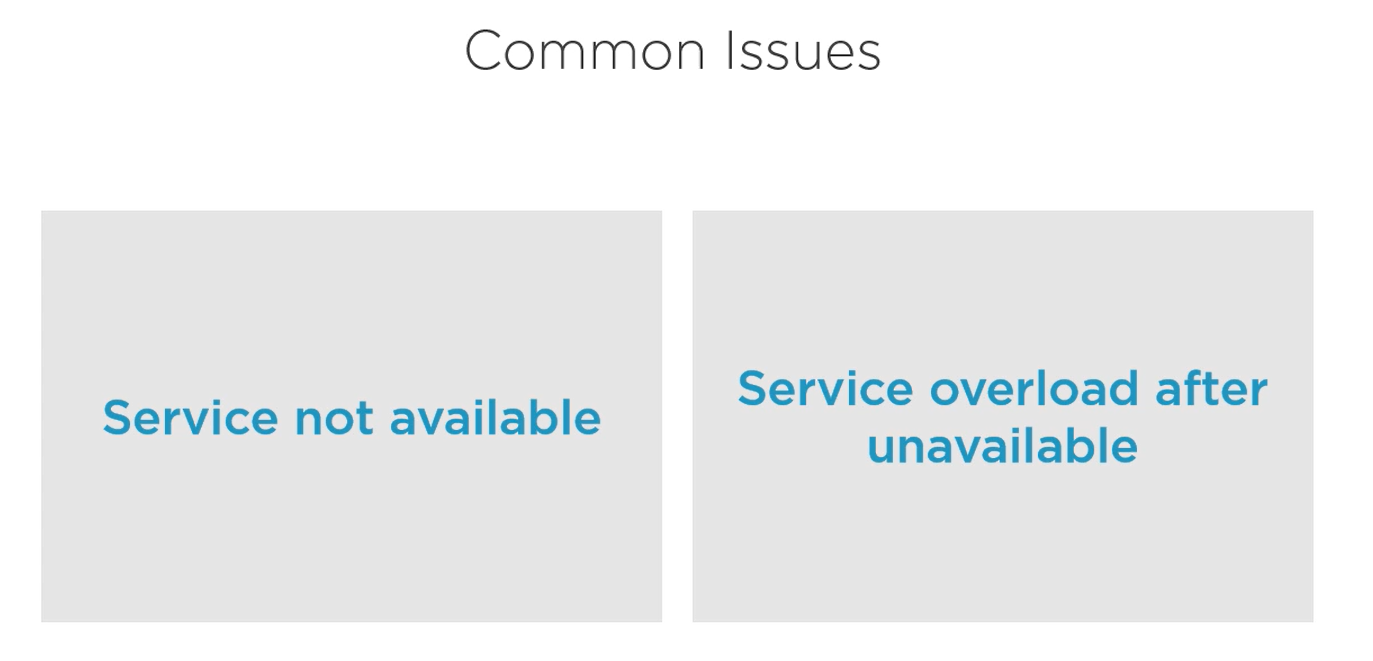

Common issues

Improving service resiliency

• Asynchronous communication
• Retry with expoental backoff
  • Automatically retry failed requests with exponential backoff.
• Circuit Breaker Pattern

What is Circuit Breaker Pattern?

The Circuit Breaker Pattern is a resilience pattern in microservices that stops repeatedly calling a failing service and allows it time to recover.

Think of it like an electric circuit breaker in your house:

• When there’s a problem (short circuit) → Breaker trips (opens) → Stops electricity flow to protect the system.
• After some time, it tries again to see if the problem is fixed.

In microservices:

• If Service A keeps calling Service B, and B keeps failing or is too slow, the circuit breaker “opens” and stops requests to B for a while.
• This prevents overloading B and frees up A to handle other requests.

How It Works (3 States)

1. Closed (Normal)

2. Calls are working fine.

3. Service A → Service B works normally.

4. Open (Problem Detected)

5. Too many failures happen.

6. Circuit “opens” and stops sending requests to B.

7. A can fallback instead (e.g., show cached data).

8. Half-Open (Testing)

9. After some wait time, the breaker allows a few test requests to B.

10. If B responds successfully → Circuit closes (back to normal).
11. If B still fails → Circuit stays open longer.

Simple Real-World Example

• Order Service → Payment Service
• Payment Service is down.

• If we keep calling it, it will:

• Waste network resources

• Slow down Order Service
• Possibly crash the whole app

With Circuit Breaker:

• After 3 continuous payment failures → Breaker opens.
• Order Service stops calling Payment Service for 30 seconds.
• It marks orders as “Payment Pending” instead (fallback).
• After 30 seconds → It sends one test request to Payment Service.
• If success → Back to normal.

Benefits

• Prevents cascading failures
• Protects resources
• Gives time for failing service to recover
• Improves user experience with fallbacks

What is Retry Pattern?

The Retry Pattern is a resilience pattern where your service automatically tries again when a request to another service fails due to a temporary problem.

Think of it like calling your friend on the phone:

• If the call doesn’t connect (network issue),
• You wait a little and try again,
• Usually, the call works on the second or third try.

How It Works

1. Service A calls Service B.

2. If the request fails due to a temporary issue (like timeout, network glitch):

3. Service A waits a bit

4. Then retries the request
5. If it succeeds, all good.
6. If it keeps failing after multiple retries, you can stop and fallback.

Important Things

• Don’t retry immediately → use Exponential Backoff:

• 1st retry after 1 second

• 2nd retry after 2 seconds
• 3rd retry after 4 seconds
• Don’t retry forever → Set a max retry count.
• Combine with Circuit Breaker to avoid overloading a failing service.

Real-World Example

Imagine Order Service → Payment Service:

1. Payment Service is temporarily slow due to high traffic.
2. Order Service calls Payment API → Timeout.

3. Retry Pattern says:

4. Wait 1 second → Retry

5. If still fails → Wait 2 seconds → Retry again
6. If succeeds → Payment completed ✅
7. If fails after 3 tries → Fallback to “Payment Pending” ❌

Benefits

• Handles temporary failures automatically
• Reduces unnecessary errors to users
• Works well with transient network issues

Common Problems Using HttpClient

1. Socket Exhaustion

• If you create a new HttpClient object for every request, it does not immediately release the TCP connection.
• Each HttpClient instance opens a new socket.

• In high-traffic apps, this leads to:

• Too many open sockets

• System.Net.Sockets.SocketException: Address already in use
• This is called socket exhaustion.

Example of bad usage:

public async Task<string> CallServiceAsync()
{
    using var client = new HttpClient(); // Creating per request
    return await client.GetStringAsync("https://example.com/api/data");
}

• Each call creates a new socket, which stays in TIME_WAIT state after disposal.

2. DNS Changes Are Ignored

• Old HttpClient instances cache DNS lookups.
• If the server IP changes (like in Kubernetes or cloud deployments), your client might still call the old IP, causing failures.

3. Performance Overhead

• Continuously creating and disposing HttpClient objects is expensive.
• It wastes memory and CPU by repeatedly creating TCP connections instead of reusing them.

Correct Way to Use HttpClient

1. Use a Single Static HttpClient

• Create one HttpClient instance and reuse it for the entire app lifetime.

public class MyService
{
    private static readonly HttpClient _httpClient = new HttpClient(); // Reused

    public async Task<string> CallServiceAsync()
    {
        return await _httpClient.GetStringAsync("https://example.com/api/data");
    }
}

2. Use HttpClientFactory

• Introduced in .NET Core 2.1 to solve these problems.

• Benefits:

• Manages connection pooling automatically

• Avoids socket exhaustion
• Supports DNS refresh
• Easy to configure retries, circuit breakers with Polly

Example using IHttpClientFactory:

// Program.cs or Startup.cs
builder.Services.AddHttpClient("MyApiClient");

// Usage in service
public class MyService
{
    private readonly HttpClient _client;

    public MyService(IHttpClientFactory factory)
    {
        _client = factory.CreateClient("MyApiClient");
    }

    public async Task<string> CallServiceAsync()
    {
        return await _client.GetStringAsync("https://example.com/api/data");
    }
}

Summary of Problems

1. Socket exhaustion – too many short-lived connections
2. DNS refresh issues – can fail in cloud/microservices
3. Performance issues – creating/discarding HttpClient is expensive

Solution → Use HttpClientFactory with Polly for retries, circuit breakers, and timeouts.

Example

call this endpoint for retry logic

/api/paymentapprover/error

Implement in ExternalGatewayPaymentService.cs file

    public async Task<bool> PerformPayment(PaymentInfo paymentInfo)
    {
        try
        {
            var client = _httpClientFactory.CreateClient("ExternalGateway");
            var dataAsString = JsonSerializer.Serialize(paymentInfo);
            var content = new StringContent(dataAsString);
            content.Headers.ContentType = new MediaTypeHeaderValue("application/json");

            var response = await client.PostAsync(
                _configuration.GetValue<string>("ApiConfigs:ExternalPaymentGateway:Uri") + "/api/paymentapprover",
                content);

            if (!response.IsSuccessStatusCode)
                throw new ApplicationException($"Something went wrong calling the API: {response.ReasonPhrase}");

            var responseString = await response.Content.ReadAsStringAsync().ConfigureAwait(false);

            return JsonSerializer.Deserialize<bool>(responseString, new JsonSerializerOptions { PropertyNameCaseInsensitive = true });
        }
        catch (BrokenCircuitException ex)
        {
            // Handle circuit breaker open state
            throw new ApplicationException("Payment service is temporarily unavailable due to repeated errors. Please try again later.", ex);
        }
    }
