Asynchronous Communication between Microservices

Adding Asynchronous communication

Why Asynchrous communication, befor that will see disadvantages of syncrhrous communication.

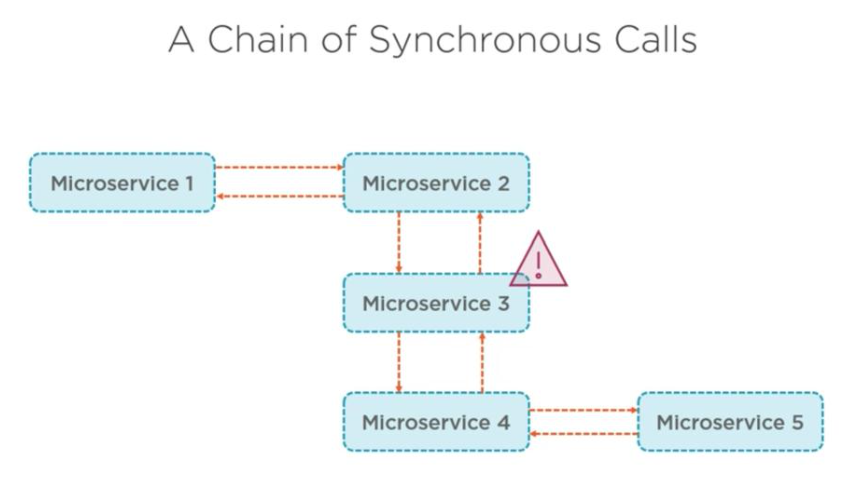

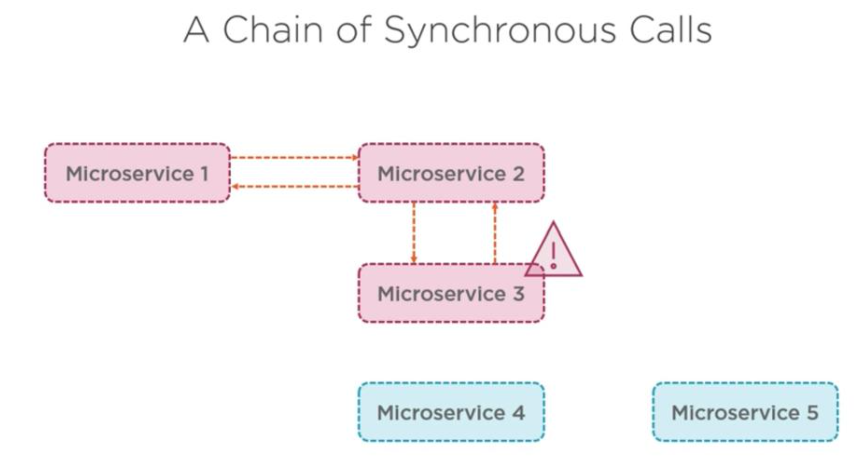

Disadvantages of Synchronous

  • Tight coupling
  • Bottleneck in system
  • One to many
  • Changes are hard
  • Error difficult to catch

alt text alt text

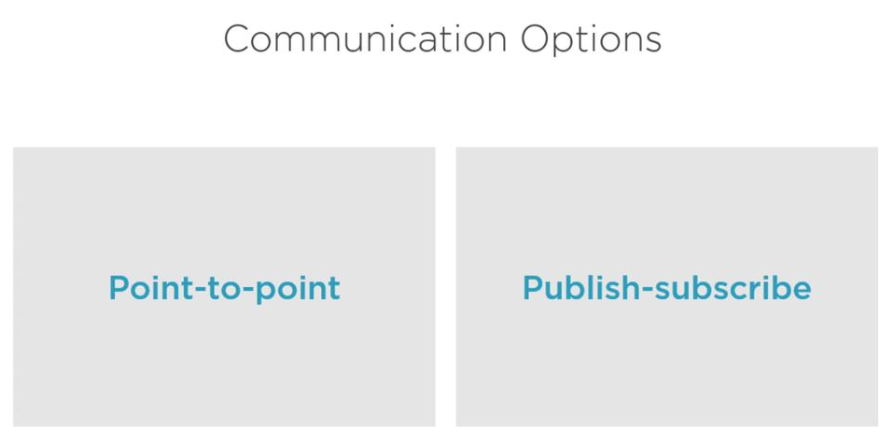

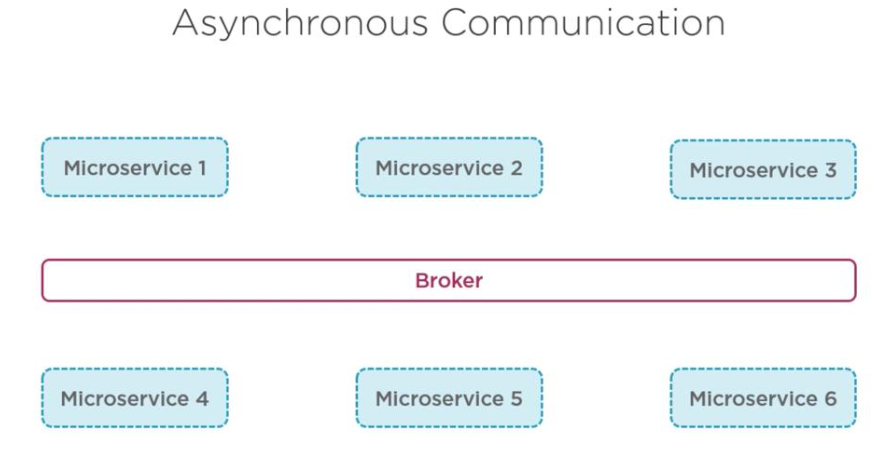

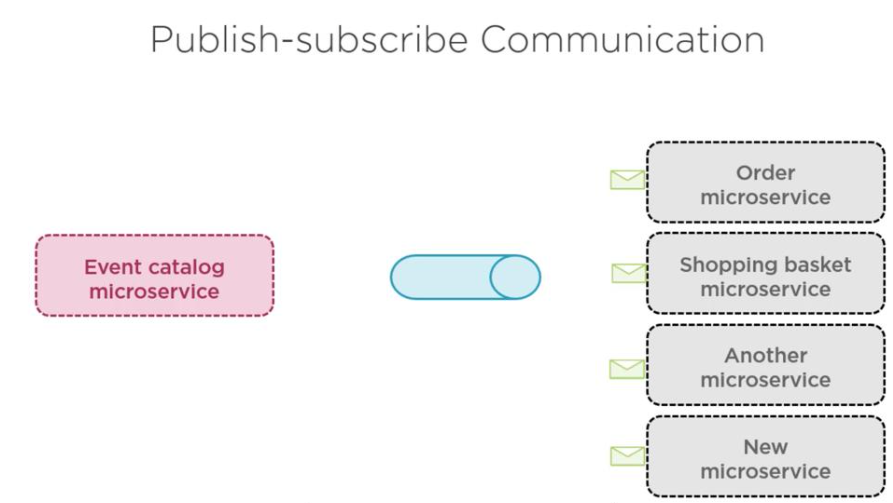

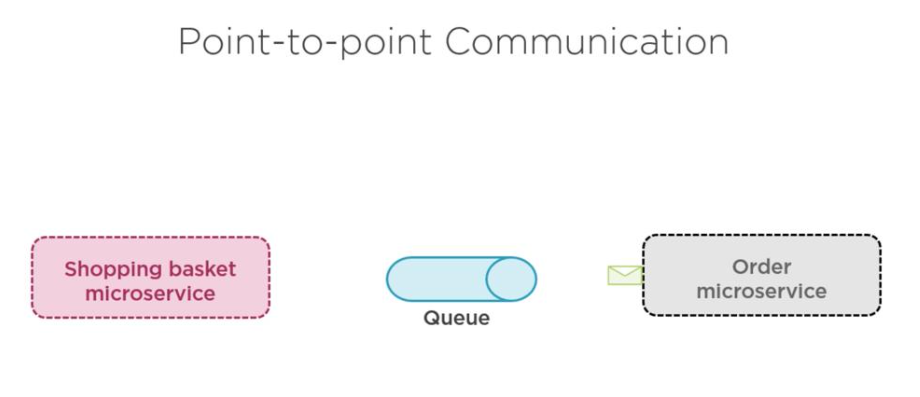

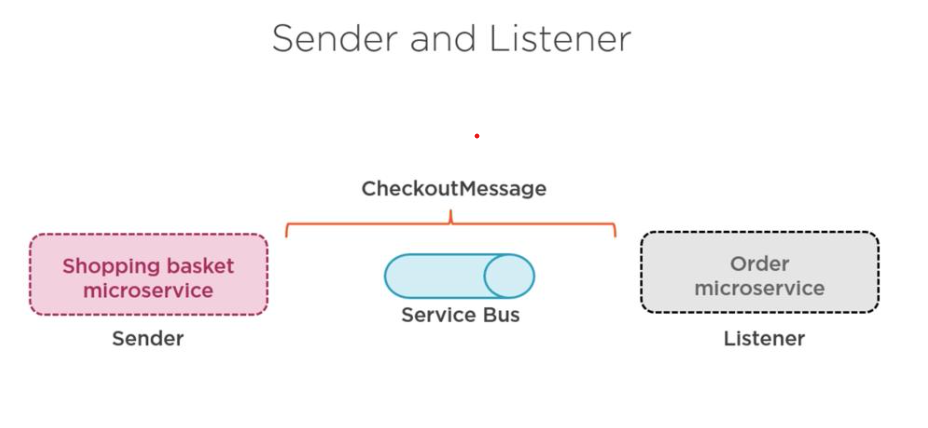

Asynchrous communication will solve a lot of above issue

alt text

alt text

alt text

alt text

dotnet new classlib -n EvenTicket.Infrastructure.Messages -o src/BuildingBlocks/Infrastructure/EvenTicket.Infrastructure.Messages
dotnet new classlib -n EvenTicket.Infrastructure.MessagingBus -o src/BuildingBlocks/Infrastructure/EvenTicket.Infrastructure.MessagingBus

dotnet sln add src/BuildingBlocks/Infrastructure/EvenTicket.Infrastructure.Messages/EvenTicket.Infrastructure.Messages.csproj
dotnet sln add src/BuildingBlocks/Infrastructure/EvenTicket.Infrastructure.MessagingBus/EvenTicket.Infrastructure.MessagingBus.csproj
dotnet sln list

Ordering service

dotnet new webapi -n EvenTicket.Services.Ordering --use-controllers -o src/EvenTicket.Services.Ordering
dotnet sln add src/EvenTicket.Services.Ordering/EvenTicket.Services.Ordering.csproj
dotnet sln list

alt text

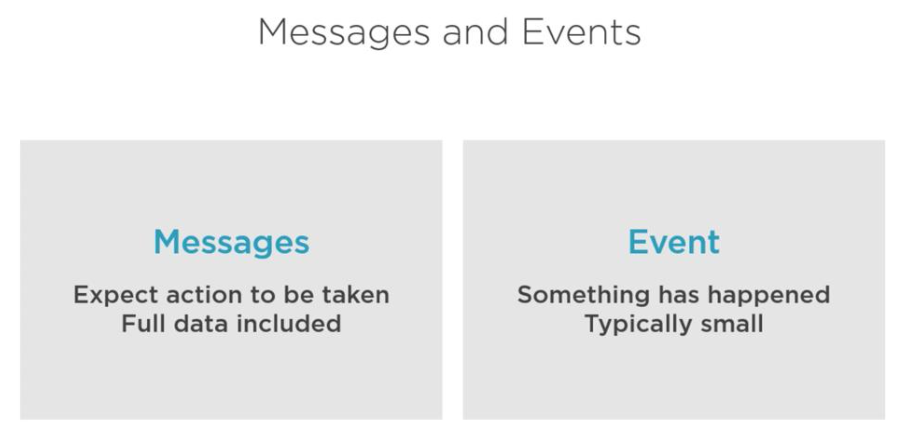

Event and messages

alt text

What is an Event?

An event is a fact or thing that has happened in a system.

It's a record of something that occurred in the past.

Example:

  • "OrderPlaced"
  • "UserRegistered"
  • "PaymentFailed"

These are immutable, meaning once they happen, they don’t change.

What is a Message?

A message is a piece of data sent from one service to another to communicate something — and it may contain an event.

Messages are how services talk to each other — either by sending commands or publishing events.

Types of Messages:

  • Event message – “An order was placed.”
  • Command message – “Create an invoice.”
  • Query message – “Get order status.”

Event vs Message (Side by Side)

Aspect Event Message
What it is A record of something that happened A communication between services
Direction Usually one-way (publish) One-way or request-response
Example "OrderPlaced" "CreateInvoiceCommand"
Nature Passive (just notifies) Active (asks for something)

Summary:

  • An event says: “Something happened.”
  • A message says: “Here’s some info for you.”

In event-driven systems, services emit events and consume events using messages.

Different options for event driven arch

  • Azure service bus
  • RabbitMQ and other

Setting up Azure service bus

check deployment folder
